PDF

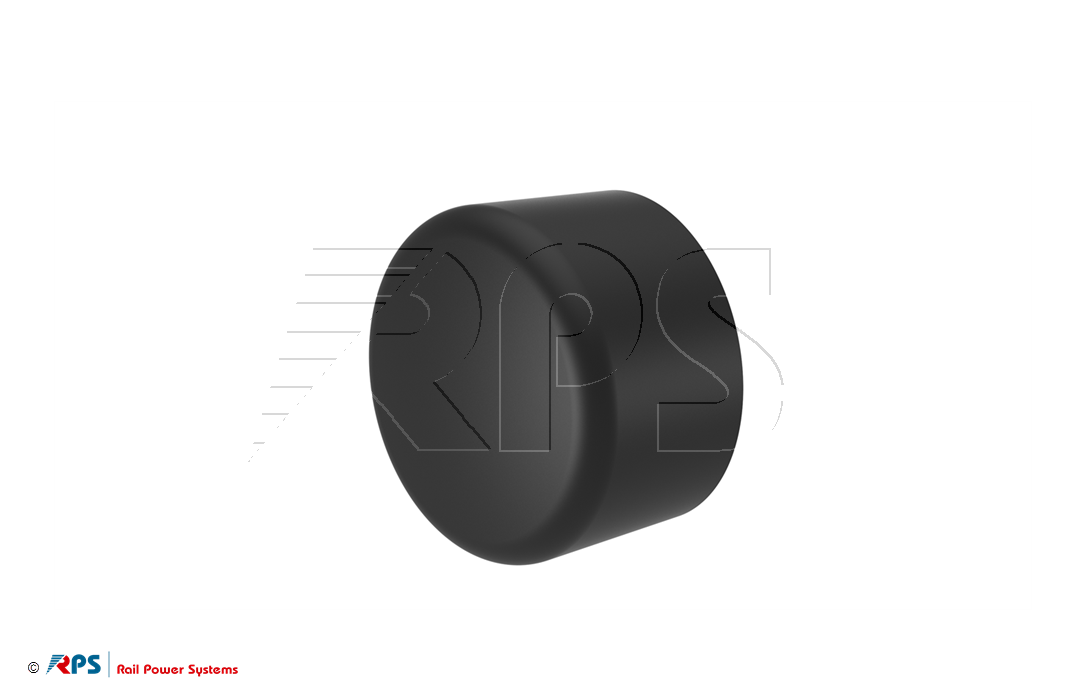

Tube Cap D 42 mm
3EGF002877
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
Diameter
Drawing Number
3EGF002874
End cap
Ebs 20.20.08
Plastic
0,024 kg
55 mm
Ebs 20.20.08 T. 4
PDF
Request
3EGF002875
End cap
Ebs 20.20.08
Plastic
0,038 kg
70 mm
Ebs 20.20.08 T. 5
PDF
Request
3EGF002876
End cap
Ebs 20.20.08
Plastic
0,008 kg
32 mm
Ebs 20.20.08 T. 6
PDF
Request
3EGF002877
Tube Cap D 42 mm
Ebs 20.20.08
PVC
0,01 kg
42 mm
Ebs 20.20.08 T. 7
PDF
Request
3EGF009511
End cap
Ebs 20.20.08
Plastic
0,007 kg
26 mm
Ebs 20.20.08 T. 8
PDF
Request
