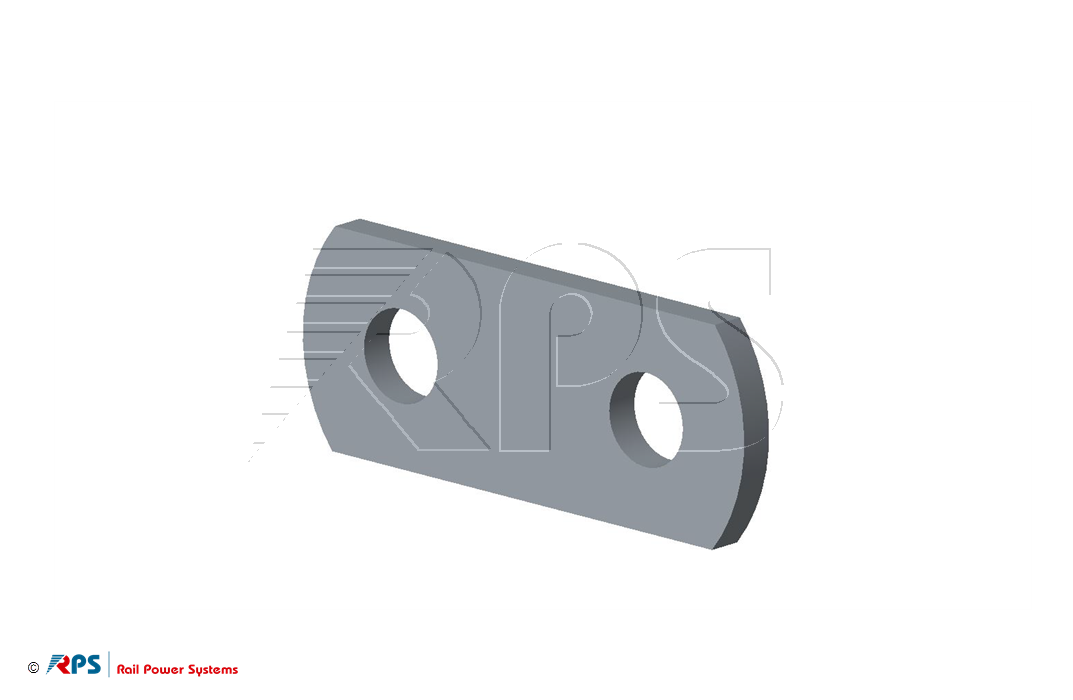

Link plate
3EGF002850
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight

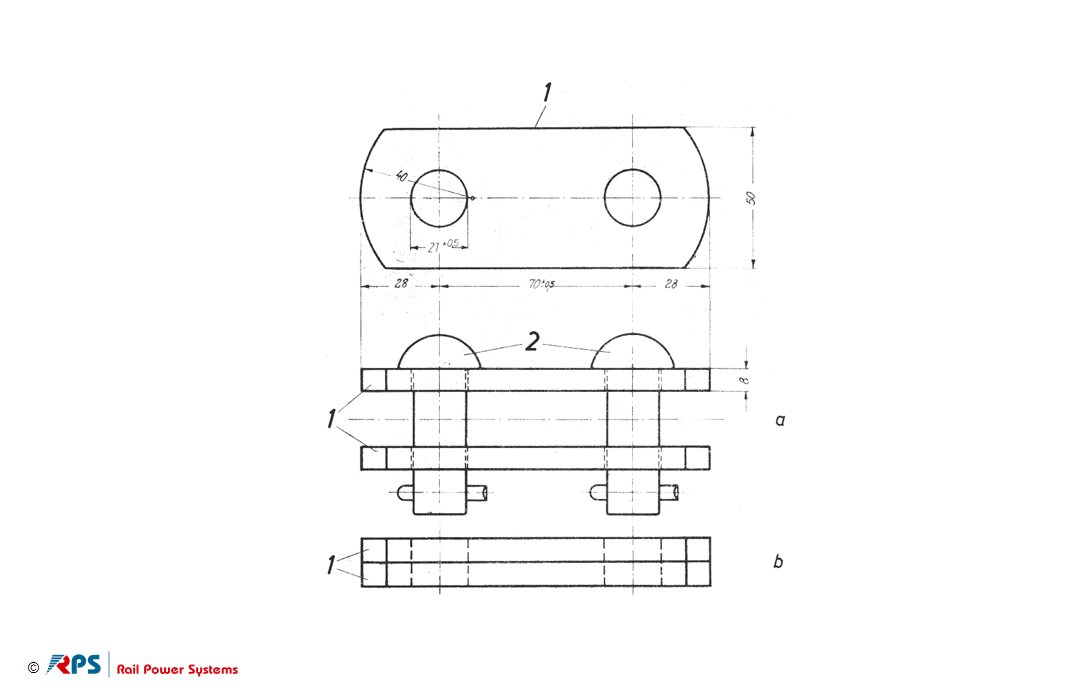

Drawing Number
3EGF002850
Link plate
Ebs 20.20.02
St
0,33 kg
EBS20.20.02
