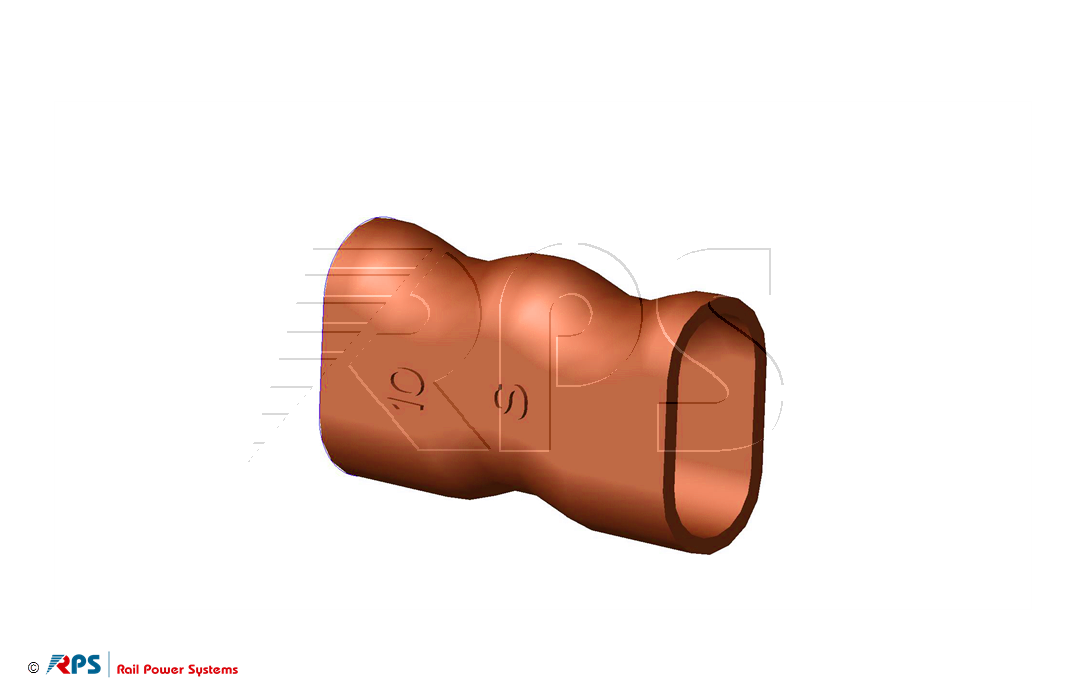

Compression splice
3EGF009357
4 slots
Variants
Request
Variants
Mechanical values
Material ID
Name
Material
Weight
L
Rope Q
Drawing Number
3EGF004386
Crimp connector
Bz II
0,035 kg
60 mm
35 mm²
DIN 48217
PDF
Request
3EGF009357
Compression splice
Cu
0,084 kg
100 mm
70 mm²
31110
PDF
Request
