PDF

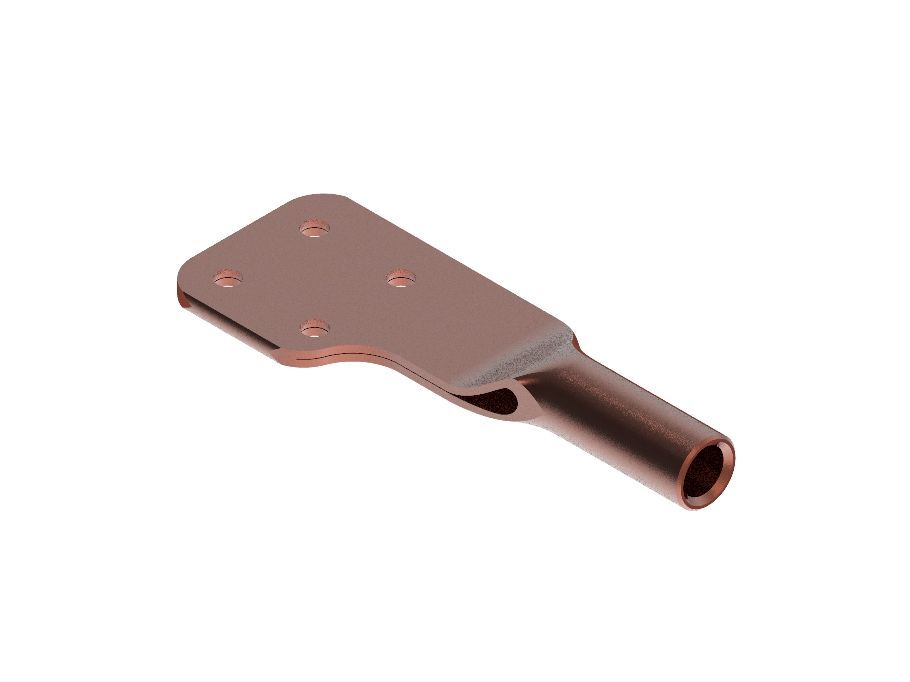

3EGF002540
Variants
Request
Variants
Mechanical values
Material ID
Ebs
Material
Rope Q
Rope Diameter

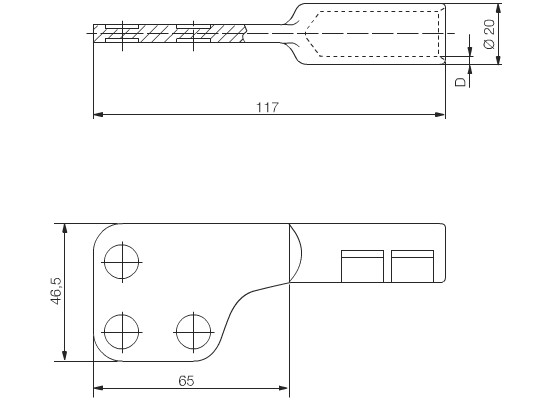

Drawing Number
3EGF002518
Ebs 15.13.23 BL1 A
Bz II
Stahl-Seil 95² mm²
11,5 mm
Ebs 15.13.23 a
PDF
Request
3EGF002539
Ebs 15.13.23 BL1 B
Bz II
NYY-O 1x50² mm²
10 mm
Ebs 15.13.23 b
PDF
Request
3EGF002540
Ebs 15.13.23 BL1 C
Bz II
NYY-O 1x70² mm² mm²
15 mm
Ebs 15.13.23 c
PDF
Request
