Compression Splice - Components

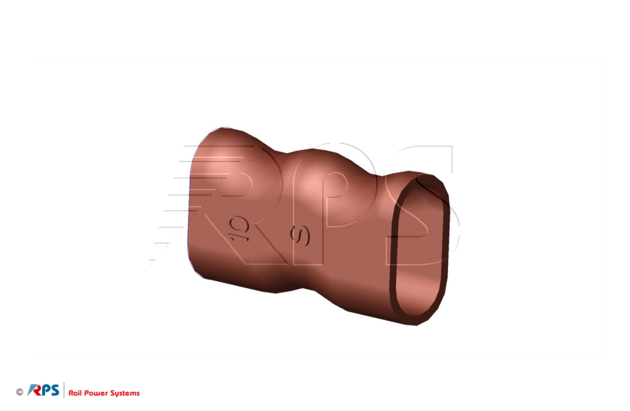

Compression splice
3EGF002775

Material ID	Name	Ebs	Material	Weight	L	Rope Q	Rope Diameter	Drawing Number
3EGF002773	Compression splice	Ebs 20.01.07-1	Cu	0,004 kg	20 mm	10 mm²	6,2 mm	Ebs 20.01.07 T.1	PDF	Request
3EGF002774	Compression splice	Ebs 20.01.07-1	Cu	0,011 kg	20 mm	16 mm²	6,2 mm	Ebs 20.01.07 T.2	PDF	Request
3EGF002775	Compression splice	Ebs 20.01.07-1	Cu	0,030 kg	55 mm	25 mm²	6,3 mm	Ebs 20.01.07 T.3	PDF	Request
3EGF002776	Compression splice	Ebs 20.01.07-1	Cu	0,064 kg	90 mm	50 mm²	9,0 mm	Ebs 20.02.07 T.4	PDF	Request
3EGF004416	Compression splice	Ebs 20.01.07-1	A2	0,050 kg	20 mm	16 mm²	6,2 mm	Ebs 20.01.07 T.6	PDF	Request
3EGF011897	Compression splice		A2	0,040 kg	50 mm	16 mm²	6,2 mm	GVT 45163981	PDF	Request
