PDF

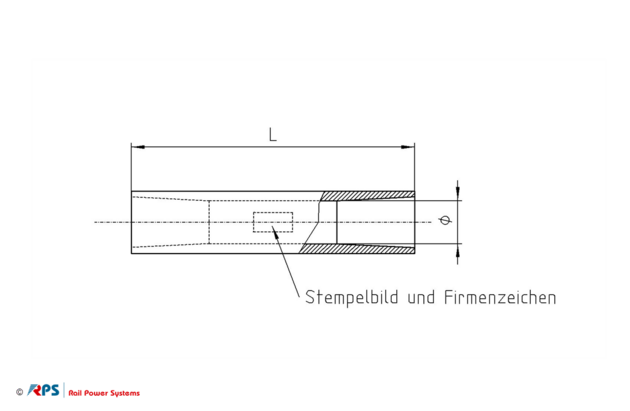

Pressverbinder
3EGF008474
Variants
Request
Variants
Mechanical values
Material ID
Name
Material
Weight
L
Diameter
Rope Q
3EGF008474
Pressverbinder
Al
0,5 kg
350 mm
22 mm
240 mm²
PDF
Request
3EGF001633
Compression splice
CuNiSi
110 mm
20 mm
70 mm²
PDF
Request
