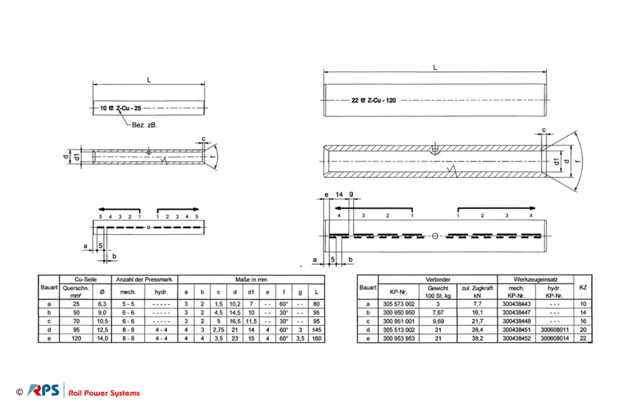

Compression Splice - Components

3EGF002793

Tension-proof, for copper wire to DIN 48 201.

Material ID	Ebs	Material	Weight	L	Rope Q	Rope Diameter	Drawing Number
3EGF002793	Ebs 20.01.17 A	Bz II	0,038 kg	80 mm	25 mm²	6,3 mm	Ebs 20.01.17	PDF	Request
3EGF002794	Ebs 20.01.17 B	Bz II	0,092 kg	95 mm	50 mm²	9,0 mm	Ebs 20.01.17	PDF	Request
3EGF002795	Ebs 20.01.17 C	Bz II	0,116 kg	95 mm	70 mm²	10,5 mm	Ebs 20.01.17	PDF	Request
3EGF002796	Ebs 20.01.17 D	Bz II	0,238 kg	145 mm	95 mm²	12,5 mm	Ebs 20.01.17	PDF	Request
3EGF002797	Ebs 20.01.17 E	Bz II	0,407 kg	160 mm	120 mm²	14,0 mm	Ebs 20.01.17	PDF	Request
