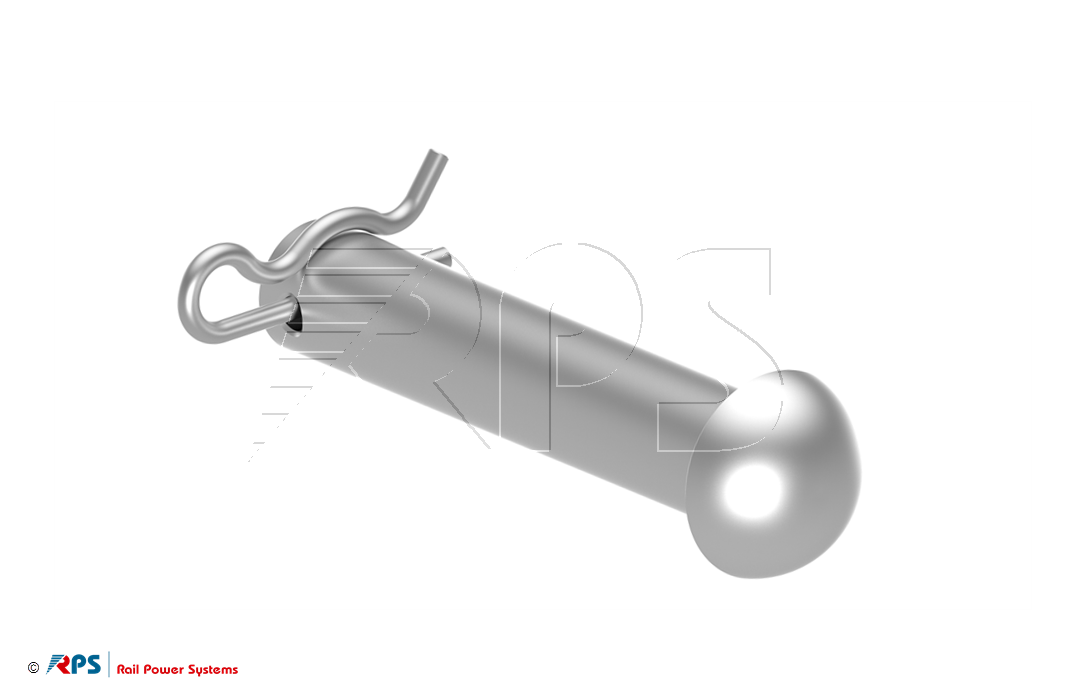

Bolt with beta-split
3EGF011359
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
L
3EGF011353
Bolt with beta-split
Ebs 20.20.09
A2-70
45 mm
PDF
Request
3EGF011354
Bolt with beta-split
Ebs 20.20.09
St-tzn
45 mm
PDF
Request
3EGF011355
Bolt with beta-split
Ebs 20.20.09
A2-70
43 mm
PDF
Request
3EGF011356
Bolt with beta-split
Ebs 20.20.09
St-tzn
63 mm
PDF
Request
3EGF011358
Bolt with beta-split
Ebs 20.20.09
Al
63 mm
PDF
Request
3EGF011359
Bolt with beta-split
Ebs 20.20.09
Al
93 mm
PDF
Request
3EGF011363
Bolt with beta-split
Ebs 20.20.09
Al
45 mm
PDF
Request
